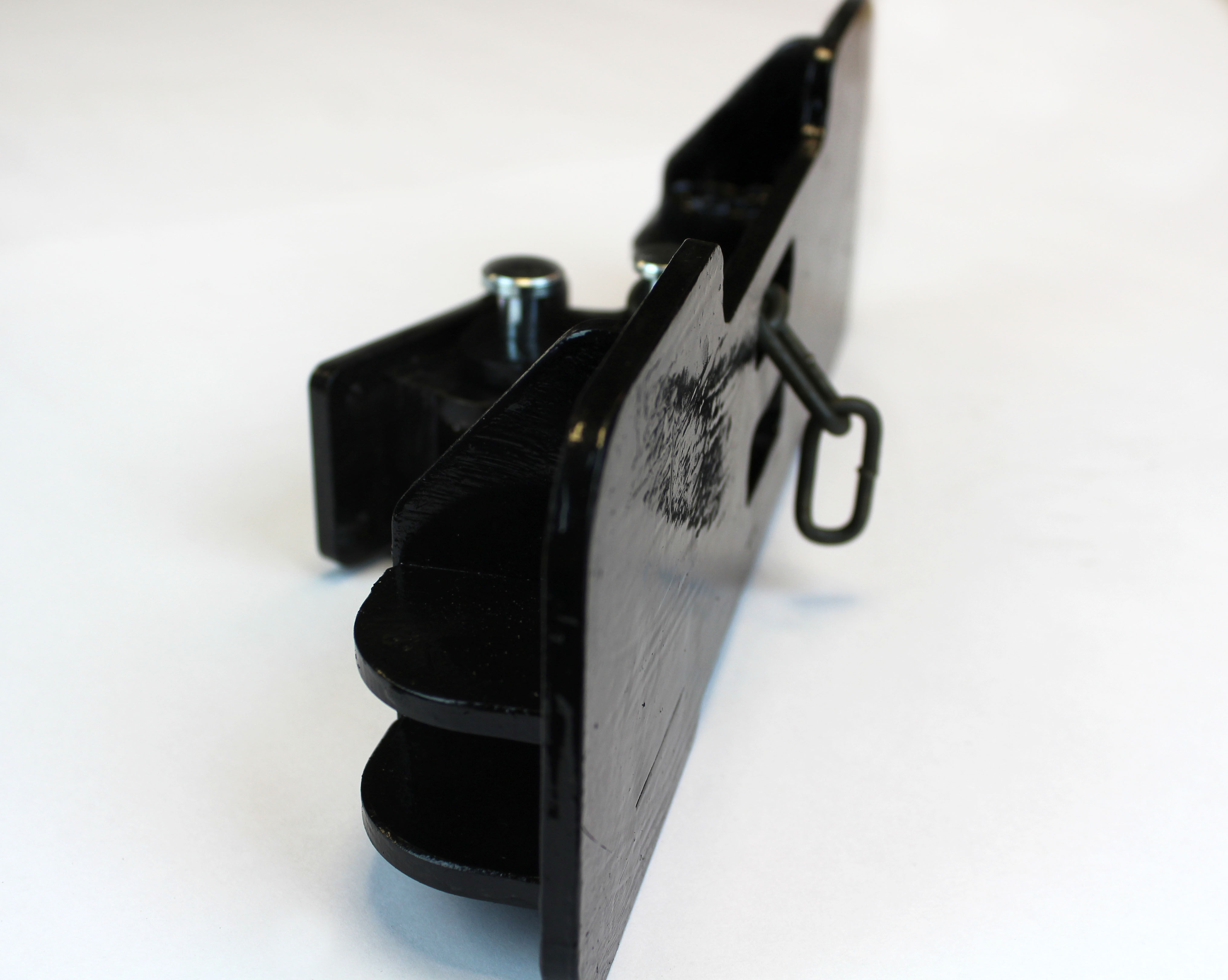

Adaptor Plate For Couplings
For product technical drawings head over to our Technical tab.
Adaptor Plate For Couplings - connect slot couples to buffers and hook/chain.
Two versions are available
Small version (310mm Wide)
Hole Diameter For pin (mm):10.
Material: Mild Steel Mig Welded construction.
Comes fully painted in black paint.
Weight: 2.6kg (approx)
Large version (430mm Wide)
Hole Diameter For pin (mm):10.
Material: Mild Steel Mig Welded construction.
Comes fully painted in black paint.
Weight: 3.6kg (approx)
A product we have been asked for numerous times is a method of coupling standard gauge hook and buffers to narrow gauge style slot and pin couplings. This is a challenge faced at many clubs who run with multiple coupling types. To overcome this, we have designed a coupling plate that slots into the coupling block and allows the chain of a standard gauge loco to be threaded through the front slot.
No Pins or chain are supplied with this adapter.
Please note that we aim to dispatch these items the next day. If purchased with a long lead time, we will hold this item and dispatch it as one order- unless otherwise agreed.
This listing is for a single coupling adaptor. If the item is out of stock or you wish to place a large order please contact us.
Safe Use
We do not provide information about the tensile strength of these couplings, they are cut from Mild Steel grade EN3B. It is your decision as the user what is an appropriate load for the products, many factors could come into play which may affect their strength. For heavy trains, you may wish to use a different coupling method.
Couplings should always be used in conjunction with a locking pin and safety chain, in accordance with relevant guidance. For more on miniature train operation please look at our Safety page.
Items can be used with 10 ¼ ,7 ¼ , 5, 3 ½ - Consideration should be given to the expected load on the coupling, thicker versions are available for high loads upon request.
It is the operator’s responsibility to ensure the day-to-day safety of the railway. For more information about this, please consult the HS2020 guidelines from the Passenger Carrying Miniature Railway Safety Group (PCMRSG). Ensure that you consult their website yourself, so for the latest version go to:- www.pcmrsg.org.uk
