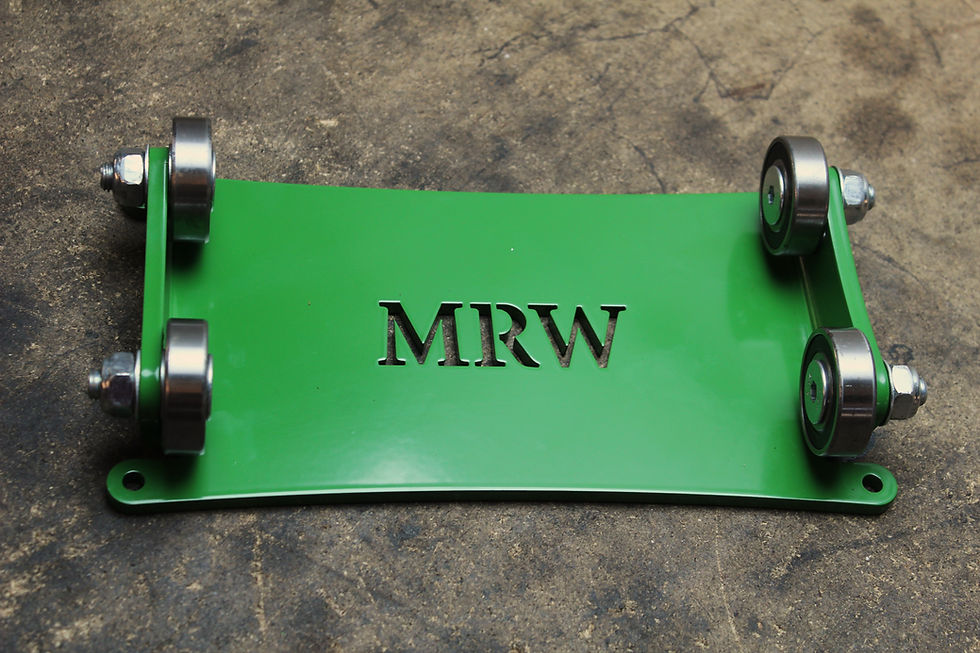

Locomotive Rolling Road

Rolling Road for the Testing of Miniature Trains - Available in 7 1/2 7 1/4, 5 or 3 1/2" Gauges




Rolling roads are ideal for testing locomotives. Built from 6mm steel plate and using sealed roller bearings, these rolling roads are sturdy and durable and an excellent tool for anyone looking to rebuild and restore miniature locomotives. We can offer a ‘fit’ service to ensure your loco will sit correctly on the rollers - all we need is your wheel diameters, axle centres and number of axles and we can generate a test CAD model. Adjustable models are available to take guess work out of the equation. These feature slots that allow the bearings to be positioned in a way that best suits your locomotive. Generally, these are only necessary for some 3 1/2" gauge locomotives. They come at a premium over the standard type - expect at least 2 extra weeks before dispatch as they are made to order.



Manufactured by CMD engineering with over 1000 units sold world wide, these Rolling Roads have become known for their high quality and durability.



Technical Information (7 1/2" Gauge):



Length: 110mm (to extremes of bearings)



Width: 239mm (body) 261mm (outer ends of bolts)



Height: 50mm (approx.)



Technical Information (7 1/4" Gauge):



Length: 110mm (to extremes of bearings)



Width: 233mm (body) 255mm (outer ends of bolts)



Height: 50mm (approx.)



Technical Information (5" Gauge):



Length: 110mm (to extremes of bearings)



Width: 176mm (body) 198mm (outer ends of bolts)



Height: 50mm (approx.)



Technical Information (3.5" Gauge):



Length: 110mm (to extremes of bearings)



Width: 138mm (body) 160mm (outer ends of bolts)



Height: 50mm (approx.)



Weight: 1.8kg, 1.7kg, 1.5kg, 1.3kg



Bearing Diameter: 40mm



Distance Between Bearing Centres: 72.5mm



Material: Mild steel powder coated



Please note we keep a small stock of these rolling roads on the shelf. We aim to dispatch within 7 days of receiving your order and will endeavour to contact you if there is a delay in delivery. If you are intending to order a large number of rolling roads please contact us to confirm lead times.



Details about the design and manufacture



The rolling road is manufactured by CMD in Kent, UK. The design has remained unchanged for many years and is well proven across the globe. It is trusted by hobbyists and commercial locomotive workshops alike and is an invaluable aid for checking aspects of locomotives such as valve timing and motion work.



Making a purchase



This listing is for a single rolling road, select the gauge and number of rolling roads you require from the drop down menu. You may also contact us for large orders and specific requirements or modifications required for your locomotive.



Defective items will be repaired/replaced within one year from the date of sale, damage caused through improper use is not covered by this guarantee.



Monitoring your rolling road



The rolling road comes with completely sealed roller bearings meaning no greasing is required. It is however recommended that the bearings are inspected before use to ensure there is still free movement so that the locomotive does not attempt ride up off the product. MRW hold no liability beyond the value of the product supplied. For full details of our terms and conditions please consult our terms and conditions on this website.
