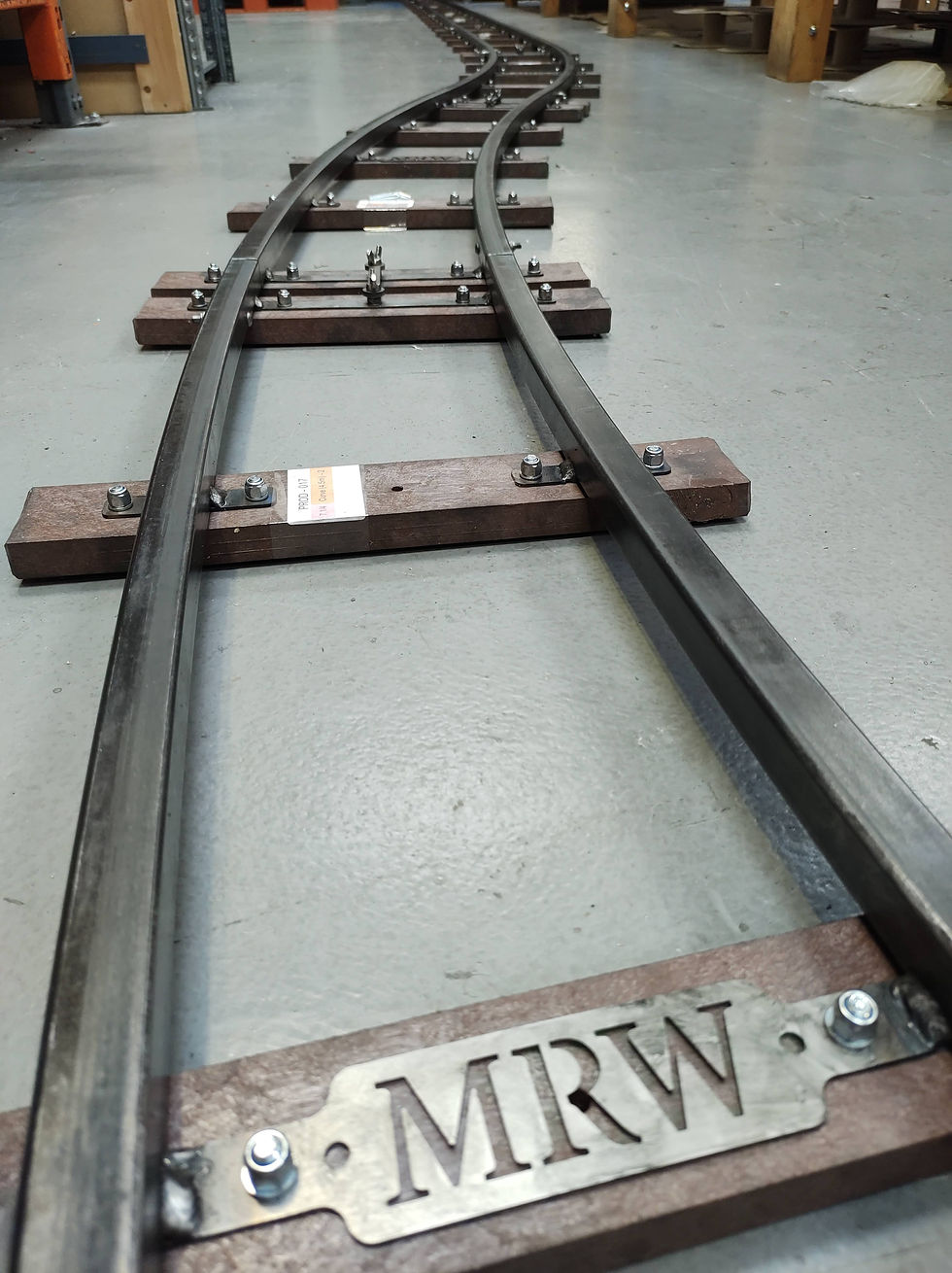

Curve (S Radius) 7 ¼ gauge Portable Jubilee Track Panel

For product technical drawings head over to our Technical tab.

Curve (S Radius) 7 ¼ gauge Portable Jubilee Track Panel (formerly known as 4.5m radius)

4.5M [14.8ft] radius curve
Angle of curve:18 degrees

Total Length: 1.6m. Length with joiners removed: 1.4m

Dimensions: 0.4m wide,  47mm tall

Weight: 6.8kg (approx)

Rail material: Hollow box steel (25x25x2mm)

Sleepers: Solid recycled plastic

Our (S) radius curve is less than half the radius of our ( K) curve. The (S) radius curve allows sharper turns, ideal for the smaller garden and similar confined spaces. This new design is derived directly from our original track panels. Using our innovative flexible fishplate, these panels easily slot together meaning an entire railway can be built in just minutes.

Complete circle / 360 degree loop:
[ 20 x 18 degree sections ]

U Bend / 180 degree turn:
[ 10 x 18 degree sections ]

Right angle / 90 degree turn:
[ 5 x 18 degree sections ]

Please note there is an approximately 2-3 week lead time on this product from payment till dispatch.

As these curves are very tight in nature we do not recommend them for long wheelbase locomotives or stock. The tighter the radius curve the more susceptible it is to cause derailments hence we would not recommend these 4.5m curves for use with regular passenger carriage associated with a commercial portable railway. They are however ideal for a back garden setup or even for use inside with family and friends.

This listing is for a single track section, select the number of sections you require from the drop down menu, or contact us for large orders.

Track sections may come with joiners removed to keep down postage costs. To attach these you wi
