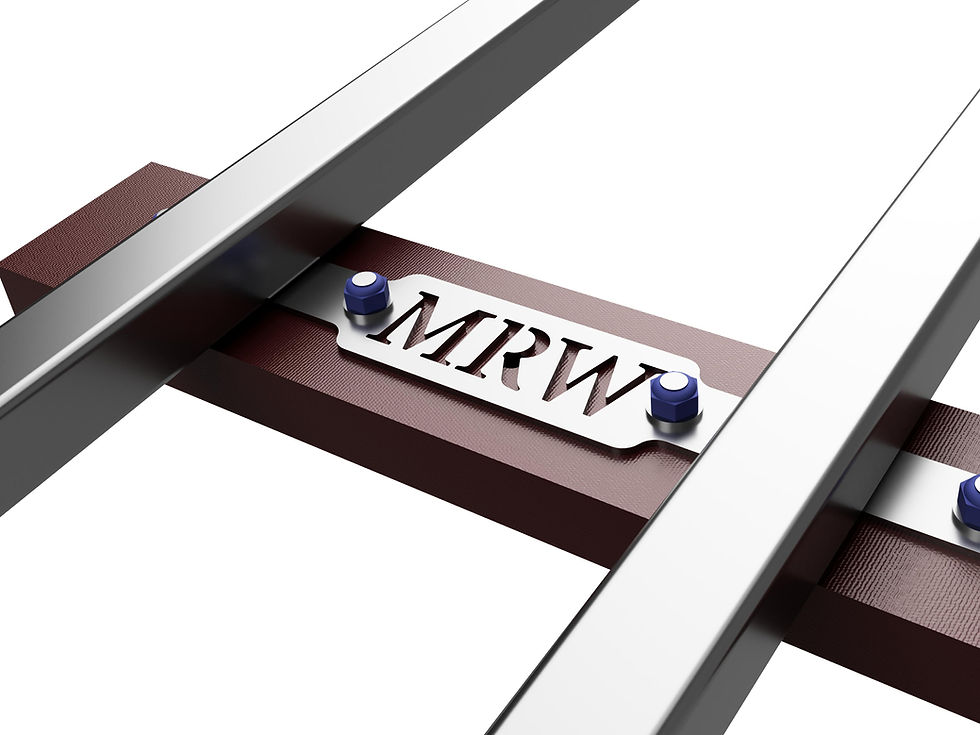

5 Inch Gauge Straight Jubilee Portable Track Panel

For product technical drawings head over to our Technical tab.



5 Inch Gauge Straight Jubilee Portable Track Panel 1.5 section.



Length: 1.49m



Weight: 6.4kg (approx)



Rail material: Hollow box steel (25x25x2mm)



Sleepers: Solid recycled plastic



Please note there is an approximately 1 week lead time on this product from payment till dispatch.



This listing is for a single track section, select the number of sections you require from the drop down menu, or contact us for large orders.



Tack sections may come with joiners removed to keep down postage costs to attach these you will simply need a 10mm spanner and 4mm allen key are needed to assemble the joiner to the rail. This is only required to be done on first installation the joiner may remain with the rail throughout use.

A standard track section weighs 6.9kg and requires careful handling to avoid injury. Personal Protective Equipment (PPE)  should be used when laying or moving portable Jubilee Track, for more advice please refer to  the ‘Operating Instructions for laying Jubilee Track’ the full version can be found on MRW website.



As standard all MRW Jubilee track panels are widened by 1.6mm [ 1/16" ] this allows for curves to be joined to straights. This widening is within the normal amount for 5 inch guage standards and should not adversely affect running.



Assembling and packing Jubilee Track to ensure it is level.



Portable Jubilee Track should be laid on a flat and level surface, packing pieces must be used wherever the ground is uneven, for a complete description of track laying including packing, please refer to the ‘Operating Instructions for laying Jubilee Track’ the full version can be found on MRW website.  Jubilee Track, laid in minutes giving hours of fun.



Monitoring your Jubilee Track



We are not aware that any MRW portable Jubilee Tack has suffered a significant amount of wear and tear, however with lots of use you need to constantly monitor the track, also look for signs of rust, with particular attention required after periods of prolonged use. For more details please refer to the ‘Operating Instructions for laying Jubilee Track’ the full version can be found on MRW website.  Jubilee Track, laid in minutes giving hours of fun.



Transportation & storage of portable track



Care should be taken when transporting, stacking and storing portable Jubilee Track, for more advice please refer to  the ‘Operating Instructions for laying Jubilee Track’ the full version can be found on MRW website.
